紙卷運輸鏈適用領域：造紙業。

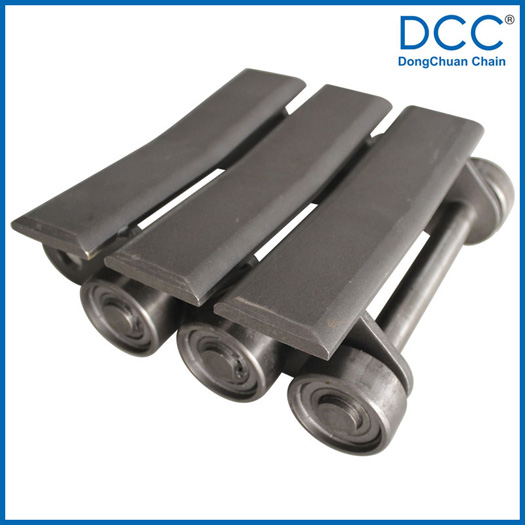

紙卷運輸鏈主要輸送紙卷，鏈條為頂板和鏈條焊接的結構。為了確保鏈條和頂板的焊接平直度，我們采用了多工位自動焊接的加工設備，對多個焊點同時焊接，降低了局部焊接時會產生的變形。頂板也采用了冷拉成型的工藝，使得頂板表面有較好的光潔度和平整度。在套筒和銷軸間加裝了SF1軸套，在銷軸兩端使用了專用的弧形外圈軸承，提高了鏈條的使用周期。

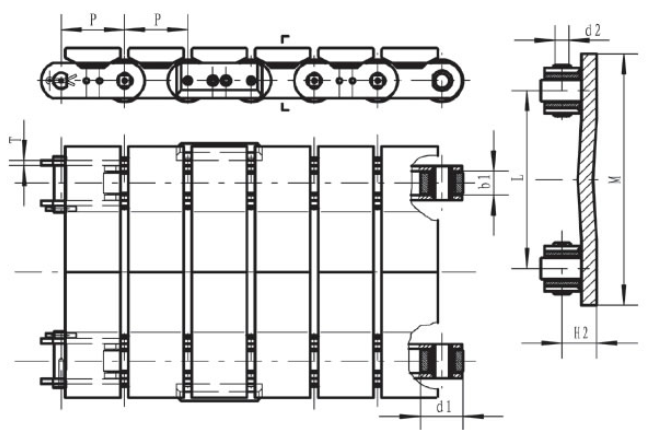

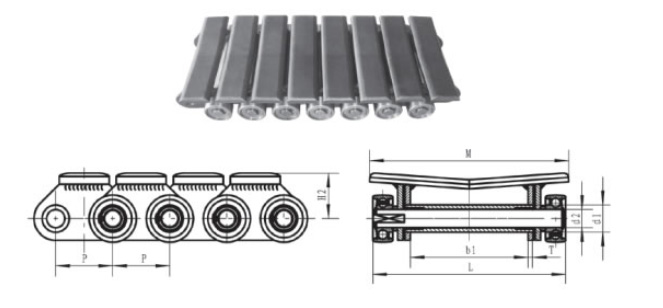

Technical Specifications
| Chain no. | Pitch P (mm) | Inner width of inner link b1 (mm) | Diameter of roller d1 (mm) | Diameter of pin d2 (mm) | Length of pin b2 (mm) | Thickness of sidebar t (mm) | Height of top plate h1 (mm) | Length of top plate m (mm) | Tensile strength q (KN) |
| 63 | 130 | 30 | 20 | 213 | 6 | 50 | 220 | 176 |
| Chain no. | Pitch P (mm) | Inner width of inner link b1 (mm) | Diameter of roller d1 (mm) | Diameter of pin d2 (mm) | Central distance between two links L (mm) | Thickness of sidebar t (mm) | Height of top plate h1 (mm) | Length of top plate m (mm) | Tensile strength q (KN) |
| 63 | 24 | 42 | 14 | 179 | 5 | 34.5 | 250 | 160 |
