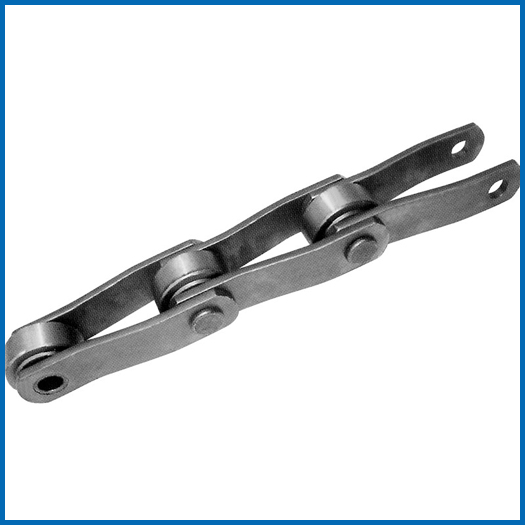

鏈條鏈板為彎板形，鏈條需耐腐蝕，耐沖擊，并要有較高的耐磨性。鏈條的材質也多為不銹鋼與合金鋼的組合，針對鏈條的使用環境和狀況，對部分的零件的表面進行鍍鉻處理，提高耐磨性和耐腐性。鏈條的銷軸也采用表面高頻后再鍍鉻的處理方式，套筒和滾子選用表面滲碳的工藝，從而，提高了鏈條的抗拉強度和耐磨性。
彎板型棕櫚油鏈適用領域：煉油業。
| Chain No. | Pitch P (mm) | Inner width of narrow end b1 (min.) (mm) | Outer diameter of roller (bushing) D (max.) (mm) | Pin | Sidebar | Min. tensile strength Q (KN) | Rated working load (KN) | Weight per meter q (kg/m) | |||
| d (mm) | L1 (mm) | Type (mm) | h (mm) | T (mm) | |||||||
| 66.17 | 28 | 22.23 | 11.1 | 31.7 | 35.1 | 28.6 | 6.4 | 122.8 | 8.1 | 5.41 | |
| 101.6 | 39.8 | 36.5 | 15.77 | 43.3 | 46.1 | 44.45 | 8 | 180 | 12.1 | 11.36 | |
| 152.4 | 34.9 | 76.2 | 22.3 | 43.6 | 53.4 | 50.8 | 9.5 | 355.6 | 24.9 | 17.93 | |
| # types refer to bushed chains without a roller. | |||||||||||
